18-SP01 |
|
|
|
|
| Attack
time |
100ns |
| Max
surge current |
50,000
Amps |
| Life |
300 surges
of 100 Amps |
| Normal
resistance
across coax. |
10,000 MOhm |
| Surge
resistance |
<>
0 Ohms |
| Power
passing
capacity |
90V DC,
90V AC,
pp/ 65Vrms
@10 Amps |
| Insertions
Loss |
Less than
0.2dB |
| Return
Loss |
16dB |
| Connectors |
BNC male
to female |

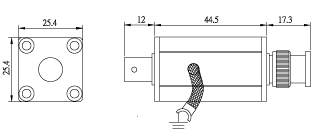

| Dimensions |
78 x 25
x x25mm |
| Weight |
80g. |
|
|
|
|
|
|
|
|
|
|
|
|
 |
