18-CC25 |
|
|
|
|
Image Sensor
|
1/3" CCD 4.82 x 3.64 color |
Picture Elements
|
EIA/NTSC
510H x 492V
CCIR/PAL
500H x 582V |
Horizontal Frequency
|
EIA/NTSC
15.734kHz
CCIR/PAL
15.625Khz |
Vertical Frequency
|
EIA/NTSC
60Hz CCIR/PAL
50Hz |
Clock Frequency
|
EIA/NTSC
19.0699Mhz
CCIR/PAL
18.9375
Mhz |
Scanning System
|
2:1
Interlace |
Horizontal resolution
|
420
Lines |
Signal to Noise ration
|
52dB |
Illumination
|
0.1
Lux |
Electronic Shutter Speed
|
1/120000
sec (Linear) |
Lens
|
C
& CS
mount |
Auto Iris
|
DC
Video drive |
Video Output
|
1V
pp 75 Ohms |
Audio Output
|
2V
pp 50 Ohms
(max) |
Gamma
|
0.45 |
White Balance
|
Auto
tracing |
Backlight Compensation
|
ON/OFF
switcheable |
Gain Control
|
ON/OFF
switcheable |
Mirror reverse picture
|
Switcheable |
Digital zoom
|
2
x |
Storage Temperature
|
-30C°
to +60°C |
Operating Temperatures
|
-10°C
to +45°C |
Weight
|
265g |

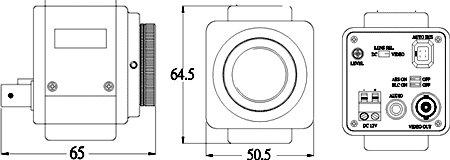

Dimensions
|
50.5
x 64.5 x
66mm |
Power Supply
|
12V
DC@ 150ma
|
|
|
|
|
|
|
|
|
|
|
|
|
