18-CD36 |
|
|
|
|
|
Image Sensor |
1/3"
CCD color |
|
Elements |
EIA/NTSC
512H x 492V
CCIR/PAL
512H x 582V |
|
Horizontal
Frequency |
EIA/NTSC
15.734kHz
CCIR/PAL
15.625Khz |
|
Vertical
Frequency |
EIA/NTSC
60Hz CCIR/PAL
50Hz |
|
Clock Frequency |
EIA/NTSC
19.0699Mhz
CCIR/PAL
18.9375
Mhz |
|
Scanning
System |
2:1
Interlace |
|
Horizontal
resolution |
420
Lines |
|
Power Supply |
12V
DC@ 150ma |
|
Illumination
|
0.8
Lux |
|
Signal to
Noise ration |
46dB |
|
Electronic
Shutter
Speed |
1/10000
sec (Linear) |
|
Lens |
C/CS
mount |
|
Video Output |
1V
pp 75 Ohms |
|
Audio Output |
N/A |
|
Gamma |
0.45 |
|
White Balance |
Auto
tracing
|
|
Backlight
Compensation |
N/A |
|
Gain Control |
Auto |
|
Auto Iris |
N/A |
|
Weight |
150g |
|

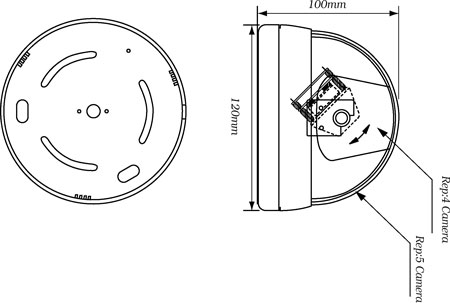

Dimensions |
120
x 100mm |
|
Storage
Temperature |
-30C to
+60C |
|
Operating
Temperatures |
-10C to
+45C |
|
|
|
|
|
|
|
|
|
|
|
|
 |
