18-CD35 |
|
|
|
|
Image Sensor |
1/3"
CCD color |
Elements |
EIA/NTSC
512H x 492V
CCIR/PAL
512H x 582V |
Horizontal
Frequency |
EIA/NTSC
15.734kHz
CCIR/PAL
15.625Khz |
Vertical
Frequency |
EIA/NTSC
60Hz CCIR/PAL
50Hz |
Clock Frequency |
EIA/NTSC
19.0699Mhz
CCIR/PAL
18.9375
Mhz |
Scanning
System |
2:1
Interlace |
Horizontal
resolution |
420
Lines |
Power Supply |
12V
DC@ 200ma |
Illumination
|
1.0Lux |
Signal to
Noise ration |
46dB |
Electronic
Shutter
Speed |
1/10000
sec (Linear) |
Lens |
3.6mm
/ F=2.0 |
Video Output |
1V
pp 75 Ohms |
Audio Output |
N/A |
Gamma |
0.45 |
White Balance |
Auto
tracing
|
Backlight
Compensation |
N/A |
Gain Control |
Auto |
Auto Iris |
N/A |
Weight |
140g |

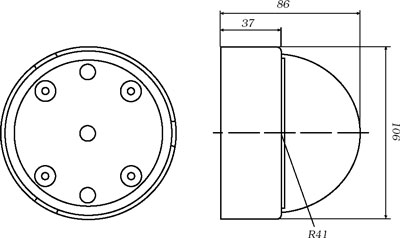

Dimensions |
106
x 86mm |
Storage
Temperature |
-30C to
+60C |
Operating
Temperatures |
-10C to
+45C |
|
|
|
|
|
|
|
|
|
|
|
|
