18-CD25
CCD Camera 18-CD25
Plastic housing dome style
2.0 Lux illumination
380 Line resolution
Auto shutter
Auto white balance

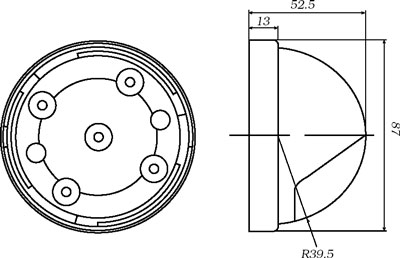

Figure
Specification
Image Sensor
1/4" CCD color
Picture Elements
EIA/NTSC 512H x 492V CCIR/PAL 512H x 582V
Horizontal Frequency
EIA/NTSC 15.734kHz CCIR/PAL 15.625Khz
Vertical Frequency
EIA/NTSC 60Hz CCIR/PAL 50Hz
Clock Frequency
EIA/NTSC 19.0699Mhz CCIR/PAL 18.9375 Mhz
Scanning System
2:1 Interlace
Horizontal resolution
380 Lines
Power Supply
12V DC@ 160ma
Illumination
2.0Lux
Signal to Noise ration
46dB
Electronic Shutter Speed
1/10000 sec (Linear)
Lens
3.6mm / F=2.0
Video Output
1V pp 75 Ohms
Audio Output
N/A
Gamma
0.45
White Balance
Auto tracing
Backlight Compensation
N/A
Gain Control
Auto
Auto Iris
N/A
Weight
135g
Dimensions
87 x 52.5mm
Storage Temperature
-30C to +60C
Operating Temperatures
-10C to +45C
