18-CA35ED |
|
|
|
|
Image Sensor
|
1/3" CCD 4.82 x 3.64 color interline (Sony)
|
Picture Elements
|
EIA/NTSC
811H x 508V
CCIR/PAL
795H x 596V |
Horizontal Frequency
|
EIA/NTSC
15.734kHz
CCIR/PAL
15.625Khz |
Vertical Frequency
|
EIA/NTSC
60Hz CCIR/PAL
50Hz |
Clock Frequency
|
EIA/NTSC
19.0699Mhz
CCIR/PAL
18.9375
Mhz |
Scanning System
|
2:1
Interlace |
Horizontal resolution
|
600
Lines |
Power Supply
|
12V
DC@ 250ma
and 24V
AC@ 120ma |
Sync System
|
AC
power with
line lock |
Weight
|
380g |

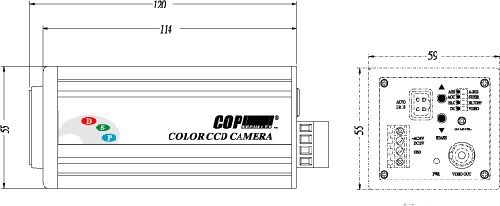

Dimensions
|
120
x 59 x 55mm |
Storage Temperature
|
-30C
to +60C |
Operating Temperatures
|
-10C
to +45C |
Illumination
|
0.005Lux |
Signal to Noise ration
|
48dB |
Electronic Shutter Speed
|
1/10000
sec (Linear) |
Lens
|
C
& CS
mount |
Video Output
|
1V
pp |
Audio Output
|
N/A |
Gamma
|
0.45 |
White Balance
|
Auto
Tracing |
Backlight Compensation
|
N/A |
Gain Control
|
Automatic
Max: +30dB
Super: +36dB |
Auto Iris
|
DC
Drive /
AES / Video
Drive |
|
|
|
|
|
|
|
|
|
|
|
|
